Multi-Agent Orchestration

Multi-agent orchestration distributes tasks across specialized agents, each focused on a specific domain such as billing, authentication, or order tracking. Orchestration relies on three components:

Routing: Determines which agent handles a request based on user intent, session state, or custom conditions. The supervisor evaluates routing rules on every message.
Context propagation: Gives the target agent the data it needs without asking the user to repeat themselves. Context does not transfer automatically. You must pass it explicitly.
Control flow: Determines whether the calling agent keeps control after routing or transfers it permanently. This controls how results flow back and whether the user notices a transfer.

Together, these mechanisms let you build systems where the user experiences a single, unified assistant while specialized agents work together behind the scenes.

Types of Orchestration

The platform supports four orchestration patterns:

Pattern	When to use	User experience
Supervisor	Entry point for multi-agent systems; routes by intent.	The user always talks to one agent, which routes the request to a specialized agent as needed.
Handoff	Route the conversation to a specialist agent.	The user is transferred to a new agent.
Delegation	The agent needs a sub-task done. It sends the sub-task to another agent and gets the result back.	Transparent. The user does not see the delegation.
Fan-out	The agent needs multiple things done in parallel. It runs multiple agents and merges the results.	Transparent. The user sees a single combined result.
Escalation	Transfer to a human agent with full context.	The user interacts with a human agent.

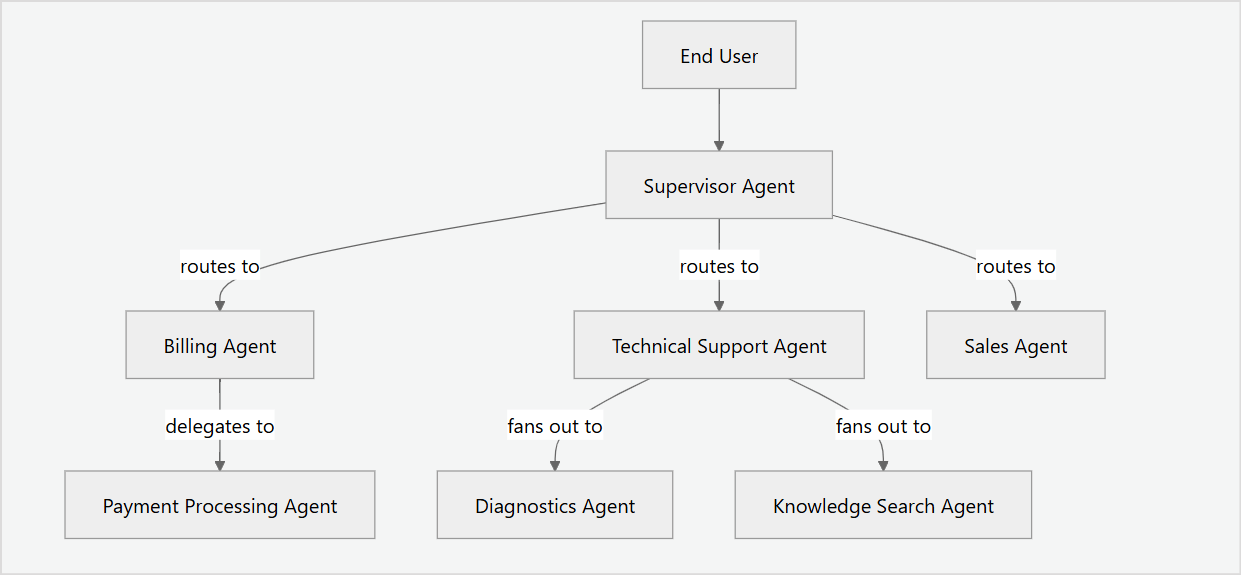

Sample Multi-Agent Orchestration

Configure Orchestration

You can configure orchestration in two ways:

Using the Agent Platform Studio

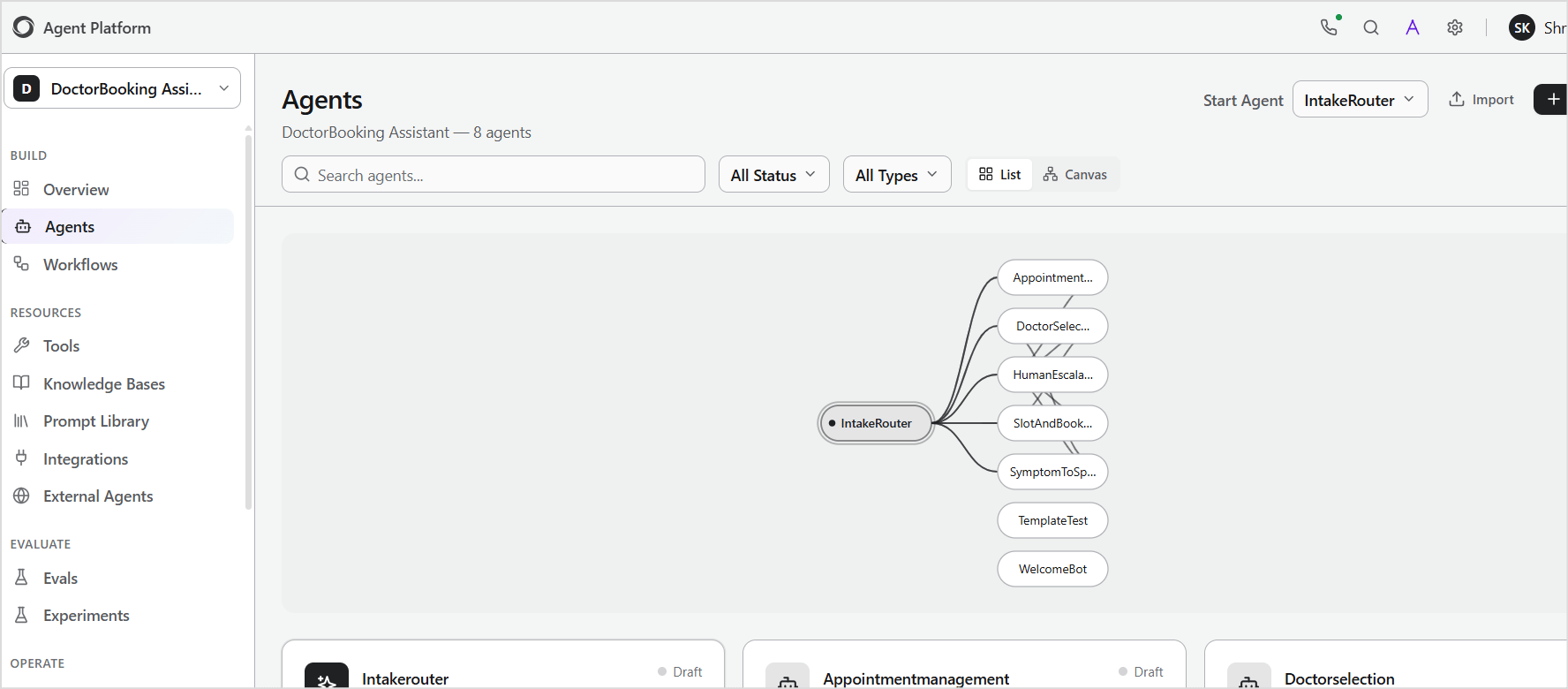

Navigate to the Agents page to view all agents in the project.

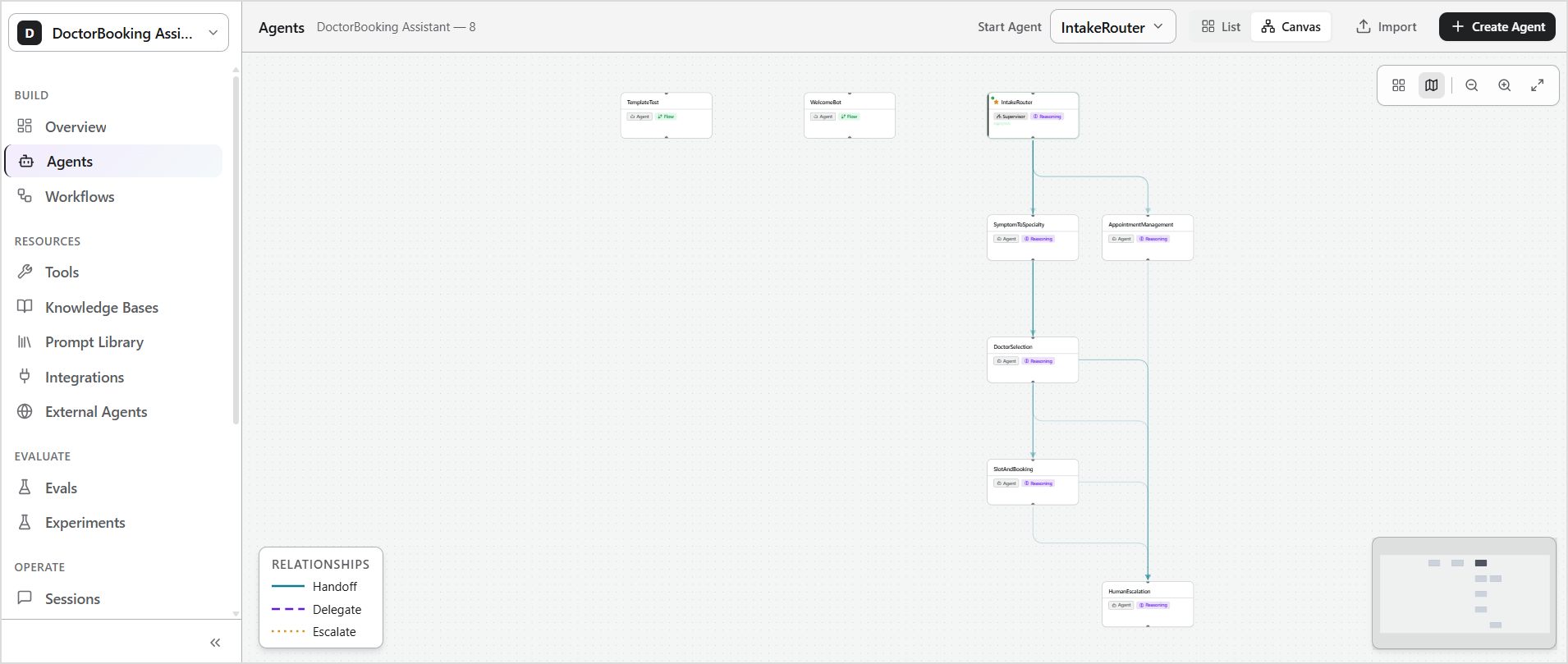

Use the Canvas view to visualize relationships between agents.
Select an agent to open its configuration page.
Configure handoffs or delegation under the Coordination section.
Save your changes.

Using the DSL Editor

Open the agent and switch to DSL view.
Define the orchestration logic using ABL constructs such as:
- SUPERVISOR
- HANDOFF
- DELEGATE
Compile and save your changes.
Updates apply immediately after a successful compilation.

The UI and ABL are interchangeable. Changes made in ABL appear in the UI, and changes made in the UI appear in ABL.

Orchestration Patterns

Supervisor

A supervisor is a special agent that acts as the central router for a multi-agent system. It does the following:

Receives every incoming message.
Routes each message to a specific agent based on user intent, session state, channel, or custom conditions.
Performs pre-routing actions, such as fetching data or checking authentication state, before forwarding the request to a specialized agent.

A multi-agent system can have only one supervisor. It is the entry point for all user interactions.

How It Works

When a user sends a message, the supervisor:

Receives the message as the active agent.
Optionally performs a pre-routing action using tools.
Evaluates its HANDOFF rules top to bottom.
Routes the message to the first agent whose WHEN condition matches.
Regains control when the child agent completes with RETURN: true.
Handles the message directly if no HANDOFF rule matches and canRespondDirectly is enabled. Otherwise, it returns an error.

How to Set Up

Define a supervisor using the SUPERVISOR keyword in the ABL file.

SUPERVISOR: "agent-name"

Then define the following properties for the supervisor agent.

Field	Required	Description
GOAL	Yes	What the supervisor is responsible for. Helps the LLM understand its role.
PERSONA	No	Defines the supervisor’s tone and communication style.
LIMITATIONS	No	Specifies what the supervisor can’t do to prevent incorrect handling.
ON_START	No	Message sent to the user at the start of the session.
TOOLS	No	Tools the supervisor can invoke before routing.
HANDOFF	Yes	List of agents to which the request is routed based on the conditions. The Platform evaluates the rules top-to-bottom; first match wins.
RETURN_HANDLERS	No	Defines actions when a child agent returns control.
ESCALATE	No	Conditions that trigger escalation to a human agent.
ON_ERROR	No	Fallback behavior when routing fails or an agent is unavailable.
COMPLETE	No	Responses sent when the session ends or a handoff completes.
MEMORY	No	Session and persistent memory configuration.

Examples

1. Travel Supervisor

SUPERVISOR: Travel_Supervisor

PERSONA: "Professional travel assistant. Friendly and efficient. Routes requests to the right specialist quickly and transparently."

GOAL: "Route customers to the right specialist -- booking, sales, support, or human agent -- with full context preservation."

LIMITATIONS:
  - "Cannot make bookings or process payments directly."
  - "Cannot access user account information directly."

ON_START:
  - RESPOND: "Welcome! I am your travel assistant. I can help you search and book flights, manage a booking, or connect you with support. What can I help you with today?"

RETURN_HANDLERS:
  route_to_booking_manager:
    CLEAR: [return_to]
    CONTINUE: true
  reclassify_intent:
    CLEAR: [current_intent]
    RESUME_INTENT: true

HANDOFF:
  - TO: Sales_Agent
    WHEN: intent.category == "new_booking" OR intent.category == "travel_search"
    CONTEXT:
      pass: [search_context, user_preferences, budget]
      summary: "User looking to book new travel."

  - TO: Booking_Manager
    WHEN: intent.category == "manage_existing_booking"
    CONTEXT:
      pass: [user_id, booking_context, auth_token]
      summary: "User managing their reservation."

ESCALATE:
  triggers:
    - WHEN: user.wants_human_agent == true OR user.frustration_detected == true
      REASON: "User requests human assistance."
      PRIORITY: high
      TAGS: [human_request]

COMPLETE:
  - WHEN: handoff_successful == true
    RESPOND: "I have connected you with the right specialist."

  - WHEN: user.session_ended == true
    RESPOND: "Thank you for using our travel service."

2. Priority-ordered routing Routing rules are evaluated top to bottom. Use specific rules before general ones.

RETURN_HANDLERS:
  route_to_booking_manager:
    CLEAR: [return_to]
    CONTINUE: true

  reclassify_intent:
    CLEAR: [current_intent]
    RESUME_INTENT: true

ESCALATE:
  triggers:
    - WHEN: intent.category == "escalation" OR user.frustration_detected == true
      REASON: "User requests human assistance or is frustrated"
      PRIORITY: high
      TAGS: [human_request]

    - WHEN: intent.category == "complaint"
      REASON: "Customer complaint requires a human specialist"
      PRIORITY: high
      TAGS: [complaint]

HANDOFF:
  - TO: Authentication_Agent
    WHEN: user.is_authenticated == false AND intent.category == "manage_booking"
    CONTEXT:
      pass: [session_context, return_to]
      summary: "User needs to authenticate"
      history: summary_only
      memory_grants:
        - path: workflow.auth_token
          access: readwrite
        - path: user.last_verified_at
          access: read
    RETURN: true
    ON_RETURN:
      handler: route_to_booking_manager
  - TO: Booking_Manager
    WHEN: user.is_authenticated == true AND intent.category == "manage_booking"
    CONTEXT:
      pass: [user_id, booking_context, auth_token]
      summary: "Authenticated user managing reservation"

  # P4 -- New bookings
  - TO: Sales_Agent
    WHEN: intent.category == "new_booking" OR intent.category == "travel_search"
    CONTEXT:
      pass: [search_context, user_preferences, budget]
      summary: "User looking to book"

  # P5 -- Fallback
  - TO: Clarification_Agent
    WHEN: intent.unclear == true OR intent.confidence < 0.5
    CONTEXT:
      pass: [session_context, last_message]
      summary: "Need clarification"
    RETURN: true
    ON_RETURN:
      handler: reclassify_intent

Supervisor with tools: Supervisors can have tools for pre-routing tasks.

SUPERVISOR: NOC_Supervisor
GOAL: "Triage network alarms and route to specialist agents"

TOOLS:
  get_active_alarms(severity: string = "all") -> {alarms: array, total: number}
    description: "Retrieve active alarms from the network management system"
    type: http
    endpoint: "https://nms.example.com/api/alarms"
    method: POST
    auth: bearer

HANDOFF:
  - TO: Network_Triage
    WHEN: alarm.category IN ["link_degradation", "fiber_cut", "hardware_warning"]
    CONTEXT:
      pass: [alarm_id, severity, site_code, category]
      summary: "New alarm requires triage"
    RETURN: true

  - TO: Incident_Manager
    WHEN: severity == "critical" OR severity == "major"
    CONTEXT:
      pass: [alarm_id, severity, site_code, affected_subscribers]
      summary: "High-severity issue requires incident management"
    RETURN: true

Handoff

A handoff transfers the conversation from one agent to another. The original agent stops handling the request at the point of handoff. A handoff can originate from a supervisor routing to a specialist agent, or directly from one agent to another for peer-to-peer routing. In both cases, the target agent receives the context and continues the conversation from that point.

How It Works

The calling agent evaluates its HANDOFF rules.
When a condition is met, the conversation transfers to the target agent.
The target agent receives the context defined in the CONTEXT block.
RETURN must be set to false for handoff orchestration.

How to Set Up

Configure the handoff in the originating agent, which is the agent that initiates the transfer.

In the Studio, open the agent and add a handoff under the Coordination section.
Alternatively, define the following properties in the ABL editor.

Field	Required	Description
TO	Yes	Name of the target agent
WHEN	Yes	Condition for routing; accepts expressions or natural language.
CONTEXT	No	Data passed to the target agent (pass, summary, history, memory_grants).
RETURN	No	Whether control returns to the supervisor or parent agent after completion (default: false).
ON_RETURN	No	Action when the child returns; references a RETURN_HANDLERS entry.
PRIORITY	No	Evaluation priority: lower numbers are evaluated first.

Use HANDOFF for machine-to-machine agent routing only. Use ESCALATE when the target agent is a human operator.

Context properties

Property	Description
pass	An array of variables to send to the target. The target agent receives these as pre-populated session variables.
summary	Natural language description of why the handoff occurred.
memory_grants	Explicit durable-memory grants (path + access) for the receiving agent.
history	Conversation history strategy (safe default: auto).

RETURN_HANDLERS actions

CLEAR - Removes the listed session variables before continuing.
CONTINUE - Resumes normal routing after the return.
RESUME_INTENT - Re-evaluates the user’s intent and re-routes.

History Strategies

Value	Behavior
`auto`	Use the handoff summary when available; otherwise, pass bounded recent history (default)
`none`	No conversation history passed
`summary_only`	Pass only the handoff summary, never raw messages
`full`	Pass the entire conversation history
`{ mode: last_n, count: }`	Pass only the last N messages using the typed bounded-history form

Examples

1. Handoff from Supervisor

SUPERVISOR: Support_Supervisor

HANDOFF:
  - TO: Order_Tracking
    WHEN: intent.category == "order_inquiry" OR intent.category == "shipping"
    CONTEXT:
      pass: [customer_id, order_id, session_context]
      summary: "Customer wants to track or manage an order"
    RETURN: false

2. Handoff from an agent

AGENT: Order_Tracking

GOAL: "Help customers track orders"

HANDOFF:
  - TO: Returns_And_Refunds
    WHEN: intent.category == "return" OR intent.category == "refund"
    CONTEXT:
      pass: [customer_id, order_id, item_id]
      summary: "Customer wants to return or get a refund for an item."
    RETURN: false

  - TO: Sales_Agent
    WHEN: reorder_ready == true AND user.ready_to_checkout == true
    CONTEXT:
      pass: [customer_id, cart_items, total]
      summary: "Customer reordering -- cart ready for checkout."
    RETURN: false

3. Pass variables during handoff

HANDOFF:
  - TO: Booking_Manager
    WHEN: intent.category == "manage_booking"
    CONTEXT:
      pass: [user_id, booking_context, auth_token]
      summary: "Authenticated user managing their reservation"

4. Scoped access to memory on handoff

HANDOFF:
  - TO: Authentication_Agent
    WHEN: user.is_authenticated == false AND action_requires_auth == true
    CONTEXT:
      pass: [session_context, return_to]
      summary: "User needs to authenticate"
      memory_grants:
        - path: workflow.auth_token
          access: readwrite
        - path: user.last_verified_at
          access: read
    RETURN: true

5. Pass complete history as context

HANDOFF:
  - TO: Support_Agent
    WHEN: intent.category == "support"
    CONTEXT:
      pass: [customer_id, issue_description]
      summary: "Customer needs technical support"
      history: full

Delegate

Delegation is a call-and-return pattern. The parent agent sends a task to a child agent, waits for the result, and then continues its own processing with the returned data. The delegation is transparent. The user does not see it.

How It Works

The parent agent evaluates its DELEGATE conditions.
When a condition matches, the parent sends the defined INPUT to the sub-agent.
The sub-agent processes the task and returns its result through its COMPLETE property.
The parent agent maps the returned values to its own session variables using RETURNS.
The parent agent continues processing using the result, as defined in USE_RESULT.
If the sub-agent fails or times out, ON_FAIL handles the error.

How to Set Up

Configure the delegation in the originating agent, which is the agent that initiates the transfer.

In the Studio, open the agent and add Delegate under the Coordination section.
Alternatively, define the following properties in the DELEGATE block in the ABL editor.

Property	Required	Description
`AGENT`	Yes	Name of the sub-agent to call
`WHEN`	Yes	The condition that triggers the delegation
`PURPOSE`	Yes	Description of what the sub-agent should accomplish
`INPUT`	Yes	Map of parent variables to sub-agent input parameters (sub-agent param → parent session variable)
`RETURNS`	Yes	Map of sub-agent output fields back to parent session variables (delegate variable → parent session variable)
`USE_RESULT`	Yes	Instructions for how the parent agent uses the result
`TIMEOUT`	No	Maximum time to wait for the sub-agent (for example, 10s)
`ON_FAIL`	No	Action if the sub-agent fails or times out. Options: RESPOND “message” (show a message and continue), ESCALATE (trigger escalation), RETRY count (retry the delegation)

Examples

1. Set up delegate from an agent.

DELEGATE:
  - AGENT: Fee_Calculator
    WHEN: action_type == "modify" OR action_type == "upgrade"
    PURPOSE: "Calculate total fees and price differences for the requested changes"
    INPUT:
      booking_id: selected_booking
      change_type: action_type
      changes: change_details
    RETURNS:
      total_fee: quoted_fee
      breakdown: fee_breakdown
    USE_RESULT: "Present fee breakdown to customer before asking for confirmation"
    TIMEOUT: "10s"
    ON_FAIL: RESPOND "Unable to calculate fees right now. Let me try again."

2. Corresponding Delegate Agent

AGENT: Fee_Calculator

GOAL: |
  Calculate all applicable fees for booking changes --
  modification fees, price differences, upgrade costs --
  and return a clear breakdown.

PERSONA: |
  Precise fee calculation specialist.
  Returns detailed breakdowns.

TOOLS:
  get_modification_fee(booking_id: string, change_type: string) -> {base_fee: number, currency: string}
    description: "Get the base modification fee"

  calculate_price_difference(booking_id: string, original_item: object, new_item: object) -> {price_diff: number, breakdown: object}
    description: "Calculate price difference between original and new selection"

COMPLETE:
  - WHEN: fee_calculated == true
    RESPOND: |
      Fee breakdown:
      {{#each fee_breakdown}}
      - {{this.description}}: {{this.amount}} {{this.currency}}
      {{/each}}
      Total: {{total_fee}} {{currency}}

3. Pass Context to Delegate Agents

DELEGATE:
  - AGENT: Fee_Calculator
    WHEN: action_type == "modify"
    PURPOSE: "Calculate fees for the modification"
    INPUT:
      booking_id: selected_booking
      change_type: action_type
      changes: change_details
    RETURNS:
      total_fee: quoted_fee
      breakdown: fee_breakdown
    USE_RESULT: "Present fee breakdown to customer"

Fan-out

Fan-out sends a task to multiple agents simultaneously and aggregates their results, such as searching flights and hotels in parallel. The parallel execution is transparent. The user sees a single combined response.

How It Works

A user message matches the WHEN condition on multiple HANDOFF or DELEGATE rules simultaneously.
All matching agents run in parallel.
Each agent runs independently and returns its results.
Results merge back into the calling agent’s state.
The calling agent responds with the aggregated result.
If one agent fails, its ON_FAIL handler runs independently and the other agents continue.

How to Set Up

You can implement fan-out in two ways:

Via Supervisor HANDOFF: Define multiple HANDOFF rules with the same WHEN condition and RETURN: true. Each matching rule triggers a separate agent. Use RETURN_HANDLERS to merge results as each agent returns.
Via DELEGATE: Define multiple DELEGATE entries with overlapping WHEN conditions. Each delegate runs independently and returns its result to the parent agent via RETURNS. Use distinct variable names in RETURNS for each delegate to prevent one result from overwriting another.

Examples

1. Via Supervisor HANDOFF - Route to multiple agents from a supervisor In the following example, when intent.category == "plan_trip" matches, all three handoff rules trigger. Each agent runs independently and returns results to the supervisor via RETURN: true. Child return data merges back into the supervisor state before the named return handler continues orchestration.

SUPERVISOR: Travel_Planner
GOAL: "Help users plan trips by searching flights, hotels, and activities in parallel"
RETURN_HANDLERS:
  merge_flight_results:
    CONTINUE: true
  merge_hotel_results:
    CONTINUE: true
  merge_activity_results:
    CONTINUE: true
HANDOFF:
  - TO: Flight_Search
    WHEN: intent.category == "plan_trip" OR intent.category == "search_flights"
    CONTEXT:
      pass: [origin, destination, travel_dates, passengers]
      summary: "Search for available flights"
    RETURN: true
    ON_RETURN:
      handler: merge_flight_results
  - TO: Hotel_Search
    WHEN: intent.category == "plan_trip" OR intent.category == "search_hotels"
    CONTEXT:
      pass: [destination, checkin_date, checkout_date, guests]
      summary: "Search for available hotels"
    RETURN: true
    ON_RETURN:
      handler: merge_hotel_results
  - TO: Activity_Search
    WHEN: intent.category == "plan_trip" OR intent.category == "search_activities"
    CONTEXT:
      pass: [destination, travel_dates, interests]
      summary: "Search for activities and experiences"
    RETURN: true
    ON_RETURN:
      handler: merge_activity_results

2. Via DELEGATE Multiple DELEGATE entries with overlapping WHEN conditions can execute in parallel. Each delegate returns its results independently.

AGENT: Trip_Planner
DELEGATE:
  - AGENT: Flight_Search
    WHEN: need_flights == true
    PURPOSE: "Find available flights for the trip"
    INPUT:
      origin: departure_city
      destination: arrival_city
      date: travel_date
    RETURNS:
      flights: available_flights
      best_price: cheapest_flight_price
    USE_RESULT: "Include flight options in the trip plan"
    TIMEOUT: "15s"
    ON_FAIL: RESPOND "Flight search is unavailable. Continuing with hotel search."

  - AGENT: Hotel_Search
    WHEN: need_hotels == true
    PURPOSE: "Find available hotels at the destination"
    INPUT:
      destination: arrival_city
      checkin: checkin_date
      checkout: checkout_date
    RETURNS:
      hotels: available_hotels
      best_price: cheapest_hotel_price
    USE_RESULT: "Include hotel options in the trip plan"
    TIMEOUT: "15s"
    ON_FAIL: RESPOND "Hotel search is unavailable. Continuing with other results."

3. Fan out with partial failure tolerance Each delegate has its own ON_FAIL handler. If one supplier is unavailable, the agent proceeds with partial results from the others.

DELEGATE:
  - AGENT: Price_Checker_A
    WHEN: comparison_mode == true
    PURPOSE: "Check price from supplier A"
    INPUT:
      product_id: sku
      quantity: qty
    RETURNS:
      price_a: supplier_a_price
    USE_RESULT: "Compare with other suppliers"
    TIMEOUT: "5s"
    ON_FAIL: RESPOND "Supplier A unavailable."

  - AGENT: Price_Checker_B
    WHEN: comparison_mode == true
    PURPOSE: "Check price from supplier B"
    INPUT:
      product_id: sku
      quantity: qty
    RETURNS:
      price_b: supplier_b_price
    USE_RESULT: "Compare with other suppliers"
    TIMEOUT: "5s"
    ON_FAIL: RESPOND "Supplier B unavailable."

Difference Between Handoff and Delegate

Aspect	Handoff	Delegation
Control flow	Transfers the conversation permanently or temporarily to another agent	Always call-and-return. The parent agent always regains control after the sub-agent completes
User awareness	The user may be aware that they are talking to a different agent	Sub-agent is never visible to the user
Data flow	CONTEXT pass list and history strategy	Structured INPUT/RETURNS mapping with explicit variable mapping on both sides
Use case	The user needs to interact with a different specialist agent	Parent agent needs a background task completed — such as a calculation or lookup — before continuing its own flow

Difference between Delegate and Fan-out

The key distinction is parallelism and scope. Use delegation when you need a result from one sub-agent before the parent can continue. Use fan-out when you need results from multiple independent agents simultaneously — for example, searching flights and hotels at the same time.

Aspect	Delegation	Fan-out
Number of agents	One sub-agent	Multiple agents simultaneously
Execution	Sequential - parent waits for the result	Parallel - all agents run at once
Results	Single result returned	Multiple results aggregated
Partial failure	Single `ON_FAIL` handler	Each agent has its own `ON_FAIL` handler. One agent failing does not stop the others.
Use case	One background task	Multiple independent tasks

Context Propagation Between Agents

No data is automatically shared between agents. Every piece of data that a target agent needs must be explicitly passed using one of three mechanisms: session variables, conversation history, or persistent memory grants.

Data type	Handoff	Delegation	Fan-out
Session metadata	Forwarded (non-internal values)	Available via parent context	Available via parent context
Conversation history	Configurable (auto default / summary_only / full / `{ mode: last_n, count }` / none)	Not shared	Not shared
Gather progress	Not transferred (each agent has its own)	Not transferred	Not transferred
Custom variables (SET)	Transferred as metadata	Passed explicitly	Passed explicitly
Workflow-scoped memory	Shared only through explicit memory_grants	Not shared unless passed	Not shared unless passed
Agent-specific state	Not transferred	Not transferred	Not transferred

Memory-based Context Sharing

MEMORY:
  session:
    - customer_id
    - current_intent
    - routing_history
    - conversation_summary
    - session_context
      TYPE: object
      DESCRIPTION: "Current session state snapshot passed to child agents on handoff"

  persistent:
    - user.name
    - user.language
    - user.preferred_agent
    - user.last_verified_at

  remember:
    - WHEN: user_name IS SET
      STORE: user_name -> user.name
    - WHEN: user_language IS SET
      STORE: user_language -> user.language

  recall:
    - ON: session:start
      ACTION: inject_context
      PATHS: [user.name, user.language, user.preferred_agent]

For more details on memory and access scopes, see the guide on memory management across agents.

Points to Note

Routing and Handoff Behavior

HANDOFF rules evaluate top-to-bottom. First match wins. Place specific conditions before general ones.
HANDOFF is for agent-to-agent routing only. Use ESCALATE when the target is a human operator or a queue.
RETURN defaults to false. Set RETURN: true explicitly when you need a call-and-return pattern.
The default history strategy is auto. Opt into summary_only for strict no-transcript transfer.

Variables and Data

Null or undefined variables are not passed at handoff time. Set all required variables before the handoff condition fires.
In a DELEGATE INPUT map, the left side is the sub-agent’s parameter name and the right side is the parent’s session variable. Reversing them causes empty input.
In fan-out, if two delegates write to the same RETURNS variable, one overwrites the other. Use unique names per delegate output.
Persistent memory requires explicit memory_grants in the CONTEXT block. Without it, the target agent cannot read the value.

Reliability

Always set TIMEOUT on every DELEGATE block. Without it, a stalled sub-agent blocks the parent indefinitely.
Track handoff_count in session memory and escalate when it reaches 3 or 4 to prevent routing loops.

Troubleshooting Guide

Routing and Handoff

Symptom	Fix
Routing goes to the wrong agent	`HANDOFF` rules evaluate top-to-bottom and first match wins. Move specific conditions above general ones.
No rule matches the user message	Add a fallback rule at the bottom of the `HANDOFF` block that routes to a clarification agent or escalates to a human.
Agent loops between supervisor and child	Set `RETURN: false` on terminal handoffs. Use `ON_RETURN` with a named handler when `RETURN: true` is used.
Handoff creates a loop between two agents	Set clear `WHEN` conditions on both sides. Use RETURN: true on one side to establish a parent-child relationship.
User is bouncing between agents	Track handoff_count in session memory and add an `ESCALATE` trigger at 3 or 4 handoffs.
User repeats information after handoff	Use `history: auto` or `history: full` in the `CONTEXT` block so the target agent has prior context.

Context and Variables

Symptom	Fix
Target agent does not receive context	Verify that all variables in the pass list are set before the handoff condition is triggered. Null or undefined variables are not passed.
Too much context slows down the agent	Pass only the variables the target agent needs. Use `history: auto or summary_only` instead of `history: full` for long conversations.
Persistent memory not accessible	Add an explicit `memory_grants` entry in the `CONTEXT` block. Without it, the target agent cannot read the value.

Delegation and Fan-out

Symptom	Fix
Delegate never returns	Set `TIMEOUT` on every `DELEGATE` block. Without it, the calling agent waits indefinitely if the sub-agent stalls.
Delegate agent does not receive input	Verify the variable names on the right side of the `INPUT` map match existing session variables in the calling agent.
Return values not mapped correctly	Verify keys in `RETURNS` match the output variable names from the delegate. Left side is the delegate’s variable, right side is the parent’s session variable.
Parallel agents not executing concurrently	Verify that multiple `WHEN` conditions match simultaneously for the same user message.
Results from one agent overwrite those of another	Use distinct variable names in `RETURNS` for each delegate. For example, supplier_a_price and supplier_b_price, not both price.
Timeout on slow agents in fan-out	Set `TIMEOUT` on each delegate independently. Use `ON_FAIL` to handle agents that do not respond in time.

Get Started

Build

Test and Evaluate

Deploy

Analytics and Insights

Administration

References

Multi-Agent Orchestration

Types of Orchestration

Configure Orchestration

Using the Agent Platform Studio

Using the DSL Editor

Orchestration Patterns

Supervisor

How It Works

How to Set Up

Examples

Handoff

How It Works

How to Set Up

Examples

Delegate

How It Works

How to Set Up

Examples

Fan-out

How It Works

How to Set Up

Examples

Difference Between Handoff and Delegate

Difference between Delegate and Fan-out

Context Propagation Between Agents

Points to Note

Routing and Handoff Behavior

Variables and Data

Reliability

Troubleshooting Guide

​Types of Orchestration

​Configure Orchestration

​Using the Agent Platform Studio

​Using the DSL Editor

​Orchestration Patterns

​Supervisor

​How It Works

​How to Set Up

​Examples

​Handoff

​How It Works

​How to Set Up

​Examples

​Delegate

​How It Works

​How to Set Up

​Examples

​Fan-out

​How It Works

​How to Set Up

​Examples

​Difference Between Handoff and Delegate

​Difference between Delegate and Fan-out

​Context Propagation Between Agents

​Points to Note

​Routing and Handoff Behavior

​Variables and Data

​Reliability

​Troubleshooting Guide

Types of Orchestration

Configure Orchestration

Using the Agent Platform Studio

Using the DSL Editor

Orchestration Patterns

Supervisor

How It Works

How to Set Up

Examples

Handoff

How It Works

How to Set Up

Examples

Delegate

How It Works

How to Set Up

Examples

Fan-out

How It Works

How to Set Up

Examples

Difference Between Handoff and Delegate

Difference between Delegate and Fan-out

Context Propagation Between Agents

Points to Note

Routing and Handoff Behavior

Variables and Data

Reliability

Troubleshooting Guide
