Gather Data from Users - Kore.ai Docs

Use GATHER to collect structured data from users through natural conversation. Instead of rigid form-filling, it lets the agent extract field values from user input in natural language — a user saying “I want to fly to Paris on March 10 for two people” can fill three fields at once. Fields can be validated, corrected, and inferred from context without restarting the flow. You can configure GATHER using the Gather Fields section in Studio or by editing the GATHER block directly in the ABL Editor.

Before You Begin

You must have an agent created in your project. See Create Agents.
To use inference and LLM-based validation, an LLM provider must be configured under Admin > Models.

Configure Gather Fields

In Studio

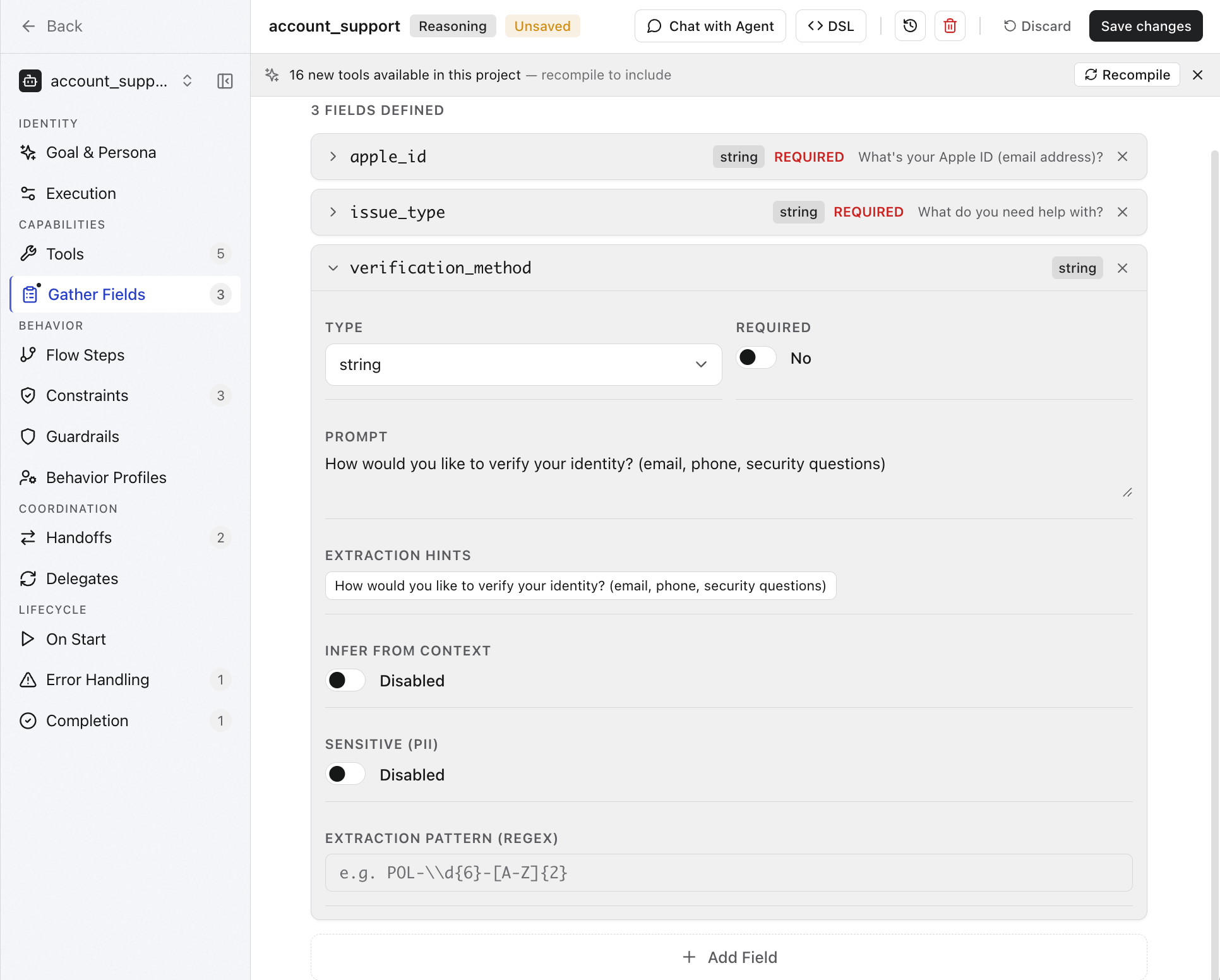

Navigate to your agent and select Gather Fields from the Capabilities group in the agent editor sidebar.

The Gather Fields page lists all defined fields. Click any field to expand its configuration, or click + Add Field to define a new one. Each field has the following properties.

Property	Description
Field name	The variable name used to reference the collected value in ABL and templates.
Type	The data type to collect. See Field types.
Required	Whether the agent must collect this field before proceeding.
Prompt	The question the agent asks the user to collect this field.
Default Value	The default value for this field.
Extraction hints	Instructions that guide the LLM on how to interpret ambiguous input for this field.
Infer from context	When enabled, the LLM extracts the value from prior conversation without asking the user again.
Sensitive (PII)	When enabled, the field value is masked in logs and traces.
Extraction pattern (regex)	A regex pattern for strict extraction. The field value must match this pattern.

Click Save changes after configuring fields.

In the ABL Editor

Define GATHER at the agent level for fields the LLM collects through natural conversation, or inside a flow step for deterministic collection. Agent-level GATHER:

AGENT: Hotel_Search
GOAL: "Help users find hotels"

GATHER:
  destination:
    prompt: "Where would you like to stay?"
    type: string
    required: true
  checkin:
    prompt: "When is your check-in date?"
    type: date
    required: true
  checkout:
    prompt: "When is your check-out date?"
    type: date
    required: true
  guests:
    prompt: "How many guests?"
    type: number
    required: false
    default: 2

GATHER inside a flow step:

collect_trip_info:
  REASONING: false
  GATHER:
    - destination: required
      prompt: "Where would you like to stay?"
    - checkin_date: required
      type: date
      prompt: "Check-in date?"
    - checkout_date: required
      type: date
      prompt: "Check-out date?"
    - num_guests:
      type: number
      default: 2
      prompt: "How many guests?"
  COMPLETE_WHEN: destination AND checkin_date AND checkout_date
  THEN: search_hotels

Agent-level GATHER uses a named field syntax. Flow step GATHER uses a compact list syntax. COMPLETE_WHEN defines when the step has enough data to advance.

Field properties

Property	Type	Required	Default	Description
prompt	string	Yes	—	The question or instruction shown to the user to collect this field
type	string	No	”string”	Data type for the field value
required	boolean	No	true	Whether the field must be collected before proceeding
default	any	No	none	Default value used if the user does not provide one
validate	string	No	none	Validation expression
validation_process	”REGEX” \| “CODE” \| “LLM”	No	none	How validation is performed
retry_prompt	string	No	none	Custom prompt shown when validation fails
max_retries	number	No	none	Maximum validation retry attempts
infer	boolean	No	false	Allow the LLM to infer the value from context
infer_confidence	number	No	0.8	Minimum confidence threshold for accepting inferred values (0.0—1.0)
infer_confirm	boolean	No	true	Whether to confirm inferred values with the user
extraction_hints	`string[]`	No	none	Hints to guide the LLM’s value extraction
prompt_mode	”ask” \| “extract_only”	No	”ask”	Whether the prompt is shown to the user or used only for LLM extraction
range	boolean	No	false	Collect as a range `{low, high}` instead of a scalar
list	boolean	No	false	Collect as an array instead of a scalar
preferences	boolean	No	false	Categorize into accept/desire/avoid/refuse preference sets
activation	string \| `{when: string}`	No	”required”	Activation mode
depends_on	`string[]`	No	none	Fields that must be collected before this field activates
sensitive	boolean	No	false	Whether this field carries PII
sensitive_display	”redact” \| “mask” \| “replace”	No	none	How sensitive values are displayed outside the gather context
mask_config	`{showFirst, showLast, char}`	No	none	Masking configuration when sensitive_display is “mask”
transient	boolean	No	false	Whether PII auto-cleans after gather completes
extraction_pattern	string	No	none	Custom regex pattern for value extraction
extraction_group	number	No	0	Capture group index for extraction_pattern
semantics	object	No	none	Supplemental metadata about the value

Field Types

Type	Example values
`string`	Any text.
`number`	`42`, `3.14`
`date`	`2026-03-15`, `next Friday`
`email`	`user@example.com`
`phone`	`+1-555-0123`
`boolean`	`yes`, `no`, `true`

Collection Strategies

The collection strategy controls how the agent extracts field values from user input.

collect_trip_info:
  REASONING: false
  GATHER:
    FIELDS:
      - checkin_date: required
      - checkout_date: required
      - num_guests: required
    STRATEGY: llm
  THEN: search_and_show

Strategy	Behavior
`llm`	LLM extracts values from natural language. This is the default.
`pattern`	Strict pattern matching only.
`hybrid`	Tries pattern matching first, then falls back to LLM for unresolved fields.

Use hybrid when some fields have a predictable format (such as order IDs or phone numbers) but others are open-ended.

Field Validation

Add validation to enforce data formats, value ranges, and business rules before the agent proceeds.

Validate With an Expression

GATHER:
  email:
    prompt: "What is your email address?"
    type: email
    required: true
    validate: pattern(^[\\w.+-]+@[\\w-]+\\.[\\w.-]+$)

  age:
    prompt: "How old are you?"
    type: number
    required: true
    validate: "value >= 18 AND value <= 120"

The validate expression is evaluated at runtime. If it fails, the agent re-prompts the user.

Set the Validation Process

GATHER:
  order_id:
    prompt: "What is your order number? (Format: ORD-XXXXX)"
    type: string
    required: true
    validation: "^ORD-[A-Z0-9]{5}$"
    validation_process: REGEX

  address:
    prompt: "What is your shipping address?"
    type: string
    required: true
    validation: "Verify this is a valid US mailing address with street, city, state, and ZIP"
    validation_process: LLM

Process	Behavior
`REGEX`	Matches the value against a regular expression pattern.
`CODE`	Runs a code snippet for validation.
`LLM`	Asks the LLM to evaluate whether the value is valid. When multiple gathered fields in the same extraction pass use `VALIDATION_PROCESS: LLM`, the runtime batches them into one validation call by default and returns per-field failures. A custom field-validation prompt override preserves legacy single-field validation calls so tenant-specific prompt contracts remain exact.

Customize Retry Behavior

GATHER:
  phone_number:
    prompt: "What is your phone number?"
    type: phone
    required: true
    validation: "^\\+?[1-9]\\d{1,14}$"
    validation_process: REGEX
    retry_prompt: "That does not look like a valid phone number. Please enter a number like +15551234567."
    max_retries: 3

retry_prompt replaces the default re-prompt message when validation fails. max_retries caps how many times the agent asks before moving on or escalating.

Validate enum Values

GATHER:
  cancellation_scope:
    prompt: "Would you like to cancel the entire order or specific items?"
    type: string
    required: true
    validate: enum(full, partial)
    infer: true
    extraction_hints:
      - "If user says 'all', 'everything', or 'whole order', infer 'full'"
      - "If user mentions specific items or says 'some', infer 'partial'"

enum() restricts accepted values to a defined set. Combined with infer: true, the LLM maps natural language input to the valid enum values.

Validate Across Fields

Validation expressions can reference other gathered fields for cross-field validation.

GATHER:
  checkin_date:
    prompt: "Check-in date?"
    type: date
    required: true
    validate: "value >= today()"
    retry_prompt: "The check-in date must be today or later."

  checkout_date:
    prompt: "Check-out date?"
    type: date
    required: true
    validate: "value > checkin_date"
    retry_prompt: "Check-out must be after your check-in date of {{checkin_date}}."

Validate with CONSTRAINTS

For business rules that go beyond field format, use CONSTRAINTS alongside GATHER.

CONSTRAINTS:
  - REQUIRE order_id.matches("^ORD-[A-Z0-9]{5}$") OR email IS SET
    ON_FAIL: "Please provide a valid order number (format: ORD-XXXXX) or an email address."

  - REQUIRE lookup_attempts <= 3
    ON_FAIL: "I have been unable to find your order after several attempts. Let me connect you with a specialist."

Validate Payment Fields in a Flow Step

collect_payment:
  REASONING: false
  GATHER:
    - card_number: required
      validation: "^[0-9]{13,19}$"
      validation_process: REGEX
      retry_prompt: "Please enter a valid card number (13-19 digits)."
      max_retries: 3
    - expiry: required
      validation: "^(0[1-9]|1[0-2])\\/([0-9]{2})$"
      validation_process: REGEX
      retry_prompt: "Please enter expiry as MM/YY."
    - cvv: required
      validation: "^[0-9]{3,4}$"
      validation_process: REGEX
      retry_prompt: "CVV must be 3 or 4 digits."
  THEN: process_payment

LLM Inference

LLM inference lets the agent fill field values from conversational context without asking the user explicitly.

Enable Inference on a Field

GATHER:
  cancellation_reason:
    prompt: "May I ask the reason for the cancellation?"
    type: string
    required: false
    infer: true

With infer: true, if the user already said “I do not need the order anymore,” the agent fills cancellation_reason without prompting again.

Control Inference Confidence

GATHER:
  destination:
    prompt: "Where would you like to travel?"
    type: string
    required: true
    infer: true
    infer_confidence: 0.9
    infer_confirm: true

Property	Default	Purpose
`infer`	`false`	Allow the LLM to extract the value from context.
`infer_confidence`	`0.8`	Minimum confidence score to accept an inferred value.
`infer_confirm`	`true`	Ask the user to confirm inferred values before proceeding.

When infer_confirm: true, the agent confirms with the user before accepting — for example, “It sounds like you want to travel to Paris. Is that correct?”

Add Extraction Hints

Extraction hints guide the LLM on how to map natural language input into structured values.

GATHER:
  cancellation_scope:
    prompt: "Would you like to cancel the entire order or specific items?"
    type: string
    required: false
    infer: true
    extraction_hints:
      - "If user says 'all', 'everything', 'whole order', infer 'full'"
      - "If user mentions specific items or says 'some', infer 'partial'"

  selected_items:
    prompt: "Which items would you like to cancel?"
    type: string
    required: false
    extraction_hints:
      - "Only needed for partial cancellations"
      - "Match user input to item names from the order"

Extraction hints are especially useful for domain-specific terminology and ambiguous phrases.

Silent Extraction Without Prompting

Use prompt_mode: extract_only when the prompt is an instruction to the LLM, not a question for the user. The agent silently extracts the value from context.

GATHER:
  sentiment:
    prompt: "Assess the customer's emotional state from the conversation"
    type: string
    required: false
    infer: true
    prompt_mode: extract_only

Activate Fields Conditionally

Use depends_on and activation to collect a field only when another field meets a condition.

GATHER:
  trip_type:
    prompt: "Is this a round trip or one way?"
    type: string
    required: true
    infer: true
    extraction_hints:
      - "If user mentions return date, infer 'round_trip'"
      - "If user says 'one way' or mentions only departure, infer 'one_way'"

  return_date:
    prompt: "When would you like to return?"
    type: date
    required: false
    infer: true
    depends_on: [trip_type]
    activation:
      when: "trip_type == 'round_trip'"

return_date is only collected when trip_type is round_trip. If the user says “I need a round trip to London, leaving March 10 and returning March 17,” both fields are inferred from a single message. Use activation: progressive to activate a field only after its dependencies are met, letting the conversation unfold naturally.

GATHER:
  budget:
    prompt: "What is your budget?"
    type: string
    required: true

  luxury_preferences:
    prompt: "Any specific luxury amenities you want?"
    type: string
    activation: progressive
    depends_on: [budget]

High-confidence Inference without Confirmation

Set infer_confirm: false for fields where the inferred value is obvious from context — for example, detecting language from how the user writes.

GATHER:
  language_preference:
    prompt: "What language do you prefer?"
    type: string
    required: false
    infer: true
    infer_confidence: 0.95
    infer_confirm: false

Use a high infer_confidence threshold to avoid silent mismatches when skipping confirmation.

Optional Fields and Defaults

Optional fields are collected only if the user provides them. Default values are used when the user skips the field.

GATHER:
  priority:
    prompt: "What priority level? (low, medium, high)"
    type: string
    required: false
    default: "medium"
  notes:
    prompt: "Any additional notes?"
    type: string
    required: false

Collecting Ranges and Lists

By default, GATHER collects a single scalar value per field. Use range or list to collect structured multi-value input instead.

Collect a Range

Set range: true to collect a {low, high} pair — useful for price ranges, age brackets, date windows, and similar bounded inputs.

GATHER:
  price_range:
    prompt: "What is your budget range? (for example. $100 to $300)"
    type: number
    required: true
    range: true

The collected value is stored as an object: {low: number, high: number}.

Collect a List

Set list: true to collect multiple values of the same type as an array — useful for item selections, amenity preferences, or multiple destinations.

GATHER:
  preferred_amenities:
    prompt: "Which amenities are important to you? (for example. pool, gym, parking)"
    type: string
    required: false
    list: true

The collected value is stored as an array: ["val1", "val2", "val3"].

Handling Sensitive Fields

For PII and sensitive fields, use the sensitive property along with sensitive_display property to suggest how to show the sensitive fields. For full details on display modes and masking configuration, see Handling transient and sensitive fields.

Present Collected Values

Use PRESENT to show collected values back to the user as each field is filled.

collect_trip_info:
  REASONING: false
  GATHER:
    - destination: required
      prompt: "Where would you like to stay?"
    - checkin_date: required
      type: date
    - checkout_date: required
      type: date

  PRESENT: |
    Here is what I have so far:
    {{#if destination}}Destination: {{destination}}{{/if}}
    {{#if checkin_date}}Check-in: {{checkin_date}}{{/if}}
    {{#if checkout_date}}Check-out: {{checkout_date}}{{/if}}

  COMPLETE_WHEN: destination AND checkin_date AND checkout_date
  THEN: search_hotels

Handling Corrections to Fields within a Flow

Enable corrections so users can change previously provided values without restarting the flow. This property is set at the flow level and not at the field level.

Enable Corrections on a Flow Step

collect_trip_info:
  REASONING: false
  GATHER:
    - destination: required
      prompt: "Where would you like to stay?"
    - checkin_date: required
      type: date
      prompt: "Check-in date?"
    - checkout_date: required
      type: date
      prompt: "Check-out date?"

  CORRECTIONS: true

  COMPLETE_WHEN: destination AND checkin_date AND checkout_date
  THEN: search_hotels

With CORRECTIONS: true, the user can say “actually, change the destination to London” at any point during collection, and the agent clears and re-collects that field.

Use SUB_INTENTS for Targeted Corrections

SUB_INTENTS define scoped intents valid only within a step. if a field is cleared by a sub intent, the agent re-collects it.

collect_trip_info:
  REASONING: false
  GATHER:
    - destination: required
    - checkin_date: required
      type: date
    - checkout_date: required
      type: date

  SUB_INTENTS:
    - INTENT: "change destination"
      CLEAR: [destination]
      RESPOND: "Sure, what is the new destination?"
    - INTENT: "change dates"
      CLEAR: [checkin_date, checkout_date]
      RESPOND: "What are your new travel dates?"

  COMPLETE_WHEN: destination AND checkin_date AND checkout_date
  THEN: search_hotels

Use ON_INPUT for Deterministic Correction Branching

get_dates:
  REASONING: false
  GATHER:
    - checkin_date: required
      type: date
    - checkout_date: required
      type: date
  ON_INPUT:
    - IF: input == "back"
      THEN: get_destination
    - IF: input.contains("change destination")
      THEN: get_destination
    - ELSE:
      THEN: get_guests

Handle Corrections at the Review Step with DIGRESSIONS

DIGRESSIONS allow jumping to any step in the flow from a review or confirmation step. Unlike SUB_INTENTS, digressions leave the current step entirely.

review_booking:
  REASONING: false
  PRESENT: |
    Booking Summary:
    Hotel: {{selected_hotel.name}}
    Dates: {{checkin_date}} to {{checkout_date}}
    Guests: {{num_guests}}
    Guest: {{guest_name}} ({{guest_email}})
    Total: ${{total_price}}

    Type "confirm" to complete or "change [field]" to modify.

  DIGRESSIONS:
    - INTENT: "change hotel"
      GOTO: select_hotel
    - INTENT: "change dates"
      CLEAR: [checkin_date, checkout_date]
      GOTO: collect_trip_info
    - INTENT: "change guest"
      GOTO: collect_guest_info

  ON_INPUT:
    - IF: input == "confirm"
      THEN: confirm
    - ELSE:
      RESPOND: "Please type 'confirm' to proceed or 'change [field]' to modify."
      THEN: review_booking

Handle Exhausted Retries

MAX_ATTEMPTS on the step limits total retries. ON_EXHAUSTED defines the fallback step when the limit is reached.

verify_identity:
  REASONING: false
  MAX_ATTEMPTS: 3
  ON_EXHAUSTED: connect_to_human
  GATHER:
    - verification_code:
        prompt: "Enter the 6-digit code sent to your phone."
        type: string
        required: true
        validation: "^[0-9]{6}$"
        validation_process: REGEX
        retry_prompt: "That code is not valid. Please enter exactly 6 digits."
        max_retries: 3
  CALL: verify_code(verification_code)
  ON_SUCCESS:
    THEN: authenticated
  ON_FAIL:
    RESPOND: "That code did not match. Please try again."
    THEN: verify_identity

MAX_ATTEMPTS counts entries to the step, not individual field retries. max_retries on a field counts field-level retries separately.

Apply Global Digressions Across All Flow Steps

Global digressions are available in every step. RESUME: true returns to the current step after handling the digression.

FLOW:
  steps:
    - welcome
    - collect_info
    - search
    - confirm

  global_digressions:
    REASONING: false
    - INTENT: "cancel"
      RESPOND: "Booking cancelled. Would you like to start over?"
      GOTO: welcome
    - INTENT: "help"
      RESPOND: "I can help you find and book hotels. Tell me your destination and dates."
      RESUME: true
    - INTENT: "start over"
      GOTO: welcome

Without RESUME, the GOTO target becomes the new active step.

Troubleshooting

Symptom	Resolution
Fields not extracted from natural language	Verify `STRATEGY: llm` is set (or omitted, since `llm` is the default). Add `extraction_hints` for ambiguous fields.
Step advances before all required fields are collected	Add `COMPLETE_WHEN` with explicit conditions listing all required fields.
Validation never passes	Check regex pattern escaping — in ABL, backslashes need to be doubled (`\\d`, not `\d`).
User stuck in retry loop	Set `max_retries` to 2–3. After exhaustion, the agent proceeds or escalates rather than looping.
Cross-field validation runs before dependent field is collected	Order `GATHER` fields so dependencies are listed first, or use `COMPLETE_WHEN` to control when validation evaluates.
Inference fills a field incorrectly	Raise `infer_confidence` to `0.9` or higher. Set `infer_confirm: true` to require explicit user confirmation.
Agent asks for a field the user already mentioned	Verify `infer: true` is set on the field and `STRATEGY` is `llm` or `hybrid` (not `pattern`).
Extraction hints ignored	Hints must be a list of strings. Each hint should be a clear, specific instruction — not a long paragraph.
User correction not detected	Add explicit `SUB_INTENTS` or `DIGRESSIONS` for the correction patterns your users are likely to use.
Cleared field not re-collected	After `CLEAR`, the step must re-prompt. Verify `GATHER` includes the cleared field and `COMPLETE_WHEN` requires it.

​Before You Begin

​Configure Gather Fields

​In Studio

​In the ABL Editor

​Field properties

​Field Types

​Collection Strategies

​Field Validation

​Validate With an Expression

​Set the Validation Process

​Customize Retry Behavior

​Validate enum Values

​Validate Across Fields

​Validate with CONSTRAINTS

​Validate Payment Fields in a Flow Step

​LLM Inference

​Enable Inference on a Field

​Control Inference Confidence

​Add Extraction Hints

​Silent Extraction Without Prompting

​Activate Fields Conditionally

​High-confidence Inference without Confirmation

​Optional Fields and Defaults

​Collecting Ranges and Lists

​Collect a Range

​Collect a List

​Handling Sensitive Fields

​Present Collected Values

​Handling Corrections to Fields within a Flow

​Enable Corrections on a Flow Step

​Use SUB_INTENTS for Targeted Corrections

​Use ON_INPUT for Deterministic Correction Branching

​Handle Corrections at the Review Step with DIGRESSIONS

​Handle Exhausted Retries

​Apply Global Digressions Across All Flow Steps

​Troubleshooting

Before You Begin

Configure Gather Fields

In Studio

In the ABL Editor

Field properties

Field Types

Collection Strategies

Field Validation

Validate With an Expression

Set the Validation Process

Customize Retry Behavior

Validate enum Values

Validate Across Fields

Validate with CONSTRAINTS

Validate Payment Fields in a Flow Step

LLM Inference

Enable Inference on a Field

Control Inference Confidence

Add Extraction Hints

Silent Extraction Without Prompting

Activate Fields Conditionally

High-confidence Inference without Confirmation

Optional Fields and Defaults

Collecting Ranges and Lists

Collect a Range

Collect a List

Handling Sensitive Fields

Present Collected Values

Handling Corrections to Fields within a Flow

Enable Corrections on a Flow Step

Use SUB_INTENTS for Targeted Corrections

Use ON_INPUT for Deterministic Correction Branching

Handle Corrections at the Review Step with DIGRESSIONS

Handle Exhausted Retries

Apply Global Digressions Across All Flow Steps

Troubleshooting
